RPP3 PROGRAMMABLESQUARE WAVE PULSER PEAMPLIFIER

RPP3 PROGRAMMABLE SQUARE WAVE PULSER PEAMPLIFIER

PRODUCT FEATURES
Programmable square wave pulser
Tunable for enhanced near surface resolution or superior
penetration power
Eight selectable excitation pulse voltages
Four selectable levels of preamplifier gain
Tunable transducer impedance matching
Outstanding signal to noise
PRF to 10,000Hz
Selection of regular (model HR) or high frequency (model HF) analog bandwidth

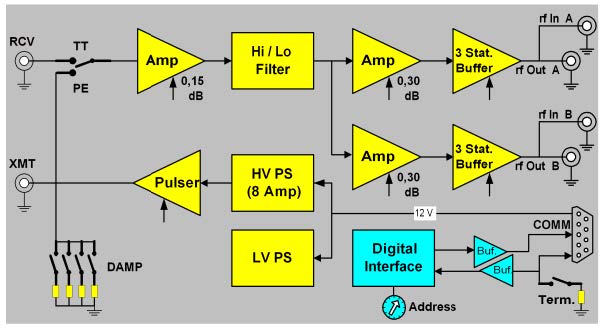

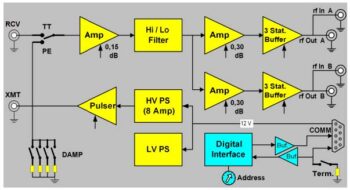

Optional dual preamplifiers (model XD) for 30dB extended dynamic range
RF protected enclosure
Remote installation to 100 meters from ultrasonic receiver
Cascade up to 8 channels with one RF cable and one COMM cable

APPLICATIONS

Ultrasonic non-destructive testing
Medical imaging
Time of Flight Measurement

OVERVIEW

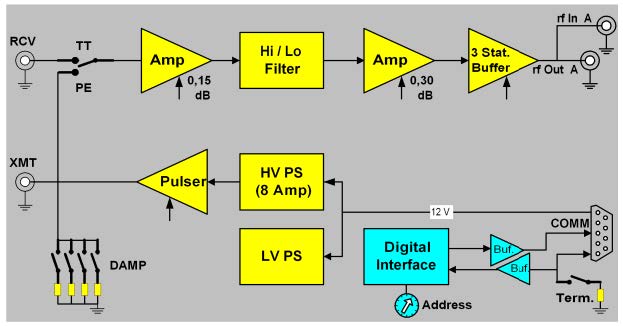

The RPP3 is a next-generation, pulser preamplifier, intended for single or multi-channel operation with the UPR-100 or UPR-101 receiver board.
The RPP3 adds significant additional capability and performance to the RPP line of pulser preamplifiers. It combines programmable flexibility for both high-resolution and high sensitivity applications in a single RF-sealed module.

RPP3 PRODUCT INFORMATION SHEET
