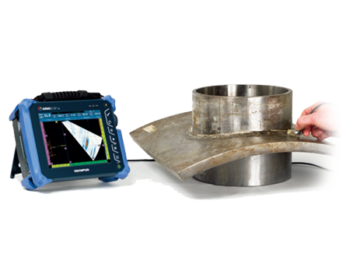

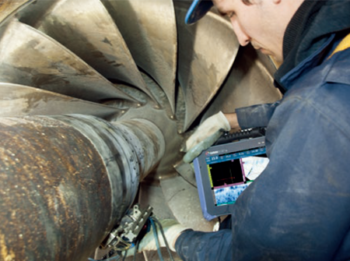

Ultrasonic Flaw DetectorOmniScan SX
Description
Ultrasonic Flaw Detector-OmniScan SX
Smaller, Lighter…Still an OmniScan
• Cost-efficient, single-group
• Two-axis encoding and data archiving capacity
• Conventional UT, TOFD, and 16:64PR PA capabilities
• 8.4 in. (21.3 cm) touch screen with OmniScan interface
• Compact, lightweight design
| Housing | Overall dimensions (W x H x D) | 267 mm × 208 mm × 94 mm (10.5 in. × 8.2 in. × 3.7 in.) |
|---|---|---|
| Weight | 3.4 kg (7.5 lb) with battery | |
| Data Storage | Storage devices | SDHC card* or most standard USB storage devices. *Lexar® brand memory cards are recommended for optimized results. |
| Data file size | 300 MB | |
| I/O Ports | USB ports | 2 USB ports, compliant with USB 2.0 specifications |
| Audio alarm | Yes | |
| Video output | Video out (SVGA) | |
| I/O Lines | Encoder | 2-axis encoder line (quadrature, up, down, or clock/direction) |
| Digital input | 4 digital TTL inputs, 5 V | |
| Digital output | 3 digital outputs TTL, 5 V, 15 mA maximum per output | |
| Acquisition on/off switch | Yes, through configuration of a digital input | |
| Power output line | 5 V, 500 mA power output line (short-circuit protected) | |
| Pace input | 5 V TTL pace input | |
| Display | Display size | 21.3 cm (8.4 in.) (diagonal) |
| Resolution | 800 pixels x 600 pixels | |
| Brightness | 600 cd/m2 | |
| Viewing angles | Horizontal: –80° to 80° Vertical: –60° to 80° | |
| Number of colors | 16 million | |
| Type | TFT LCD | |
| Power Supply | Battery type | Smart Li-ion battery |
| Number of batteries | 1 | |
| Battery life | Minimum 6 hours under normal operating conditions | |
| Environmental Specifications | Operating temperature range | -10 °C to 45 °C (14 ºF to 113 ºF) |
| Storage temperature range | –20 °C to 60 °C (–4 ºF to 140 ºF) with battery –20 °C to 70 °C (–4 ºF to 158 ºF) without battery |
|
| Relative humidity | Max. 70% RH at 45°C noncondensing | |
| Ingress protection rating | Designed to meet requirements of IP66 | |
| Shockproof rating | Drop-tested according to MIL-STD-810G 516.6 | |
| Ultrasound Specifications (applies to OMNISX-1664PR) | Connectors | 1 Phased Array connector: Olympus PA connector 2 UT connectors: LEMO 00 |
| Number of focal laws | 256 | |
| Probe recognition | Automatic probe recognition |
| Pulser/Receiver | Aperture | 16 elements | ||
|---|---|---|---|---|
| Number of elements | 64 elements | |||
| Pulser | PA Channels | UT Channel | ||
| Voltage | 40 V, 80 V, and 115 V | 95 V, 175 V, and 340 V | ||
| Pulse width | Adjustable from 30 ns to 500 ns; resolution of 2.5 ns | Adjustable from 30 ns to 1,000 ns; resolution of 2.5 ns | ||
| Pulse shape | Negative square wave | Negative square wave | ||
| Output impedance | 35 Ω (pulse-echo mode); 30 Ω (pitch- catch mode) |
<30 Ω | ||
| Receiver | PA Channels | UT Channel | ||
| Gain | 0 dB to 80 dB, maximum input signal 550 mVp-p (full-screen height) | 0 dB to 120 dB maximum input signal 34.5 Vp-p (full-screen height) | ||
| Input impedance | 60 Ω (pulse-echo mode); 150 Ω (pitch- catch mode) |
60 Ω (pulse-echo mode); 50 Ω (pulse-receive mode) |
||
| System bandwidth | 0.6 MHz to 18 MHz (–3 dB) | 0.25 MHz to 28 MHz (–3 dB) | ||
| Beamforming | Scan type | Sectorial or linear | ||
|---|---|---|---|---|
| Group quantity | 1 | |||
| Data Acquisition | PA Channels | UT Channel | ||
| Digitizing frequency | 100 MHz | 100 MHz | ||
| Maximum pulsing rate | Up to 6 kHz (C-scan) | |||
| Data Processing | PA Channels | UT Channel | ||
| Number of data points | Up to 8,192 | |||
| Real-time averaging | PA: 2, 4, 8, 16 | UT: 2, 4, 8, 16, 32, 64 | ||
| Rectifier | RF, full wave, half wave +, half wave – | |||
| Filtering | 3 low-pass, 3 band-pass, and 5 high-pass filters | 3 low-pass, 6 band-pass, and 3 high-pass filters (8 low-pass filters when configured in TOFD) | ||
| Video filtering | Smoothing (adjusted to probe frequency range) | |||
| Data Visualization | A-scan refresh rate | A-scan: 60 Hz; S-scan: 60 Hz |
|---|---|---|
| Data Synchronization | On internal clock | 1 Hz to 6 kHz |
| On encoder | On 2 axes: from 1 to 65,536 steps | |
| Programmable Time-Corrected Gain (TCG) | Number of points | 16: One TCG (time-corrected gain) curve per focal law |
| Maximum slope | 40 dB/10 ns | |
| Alarms | Number of alarms | 3 |
| Conditions | Any logical combination of gates |
The OmniScan SX meets or exceeds the minimum instrumentation and software requirements as specified in ASME, AWS, API, and EN codes.
