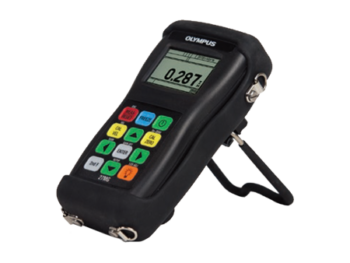

Ultrasonic Thickness Gage27MG

Category: Ultrasonic Testing

Description

27MG

Ultrasonic Thickness Gage

• Dual Element Corrosion Gaging

• Large Backlit LCD Display

• Rugged Handheld Design

Measurements	Dual element transducer measurement mode	Time interval from a precision delay after the excitation pulse to the first echo
	Thickness range	0.50 mm to 635 mm (0.020 in. to 25.0 in.) depending on material, transducer, surface conditions, temperature
	Material velocity range	0.508 mm/μs to 18.699 mm/μs (0.020 in./μs to 0.7362 in./μs)
	Resolution (selectable)	Low: 0.1 mm (0.01 in.) Standard: 0.01 mm (0.001 in.)
	Transducer frequency range	2.25 MHz to 10 MHz (–3 dB)
General	Operating temperature range	-10 °C to 50 °C (14 °F to 122 °F)
	Keypad	Sealed, color-coded keypad with tactile and audible feedback
	Case	Impact-resistant and water-resistant, gasketed case with sealed connectors. Designed for IP65.
	Dimensions (W x H x D)	84.0 mm x 152.4 mm x 39.6 mm (3.31 in. x 6.0 in. x 1.56 in.)
	Weight	340 g (12 oz)
	Power Supply	3 AA alkaline batteries
	Battery life operating time	150 h of typical battery life, 30 h continuous use with backlight
	Explosive Atmosphere	Safe operation as defined by Class I, Division 2, Group D, as found in the National Fire Protection Association Code (NFPA 70), Article 500, and tested using MIL-STD-810F 511.4 Procedure I
	Standards	Designed for EN15317
	Alarm mode	Programmable Hi/Low set points with audible and visual indicators
Display	Display Hold/Blank mode	Holds or blanks the display after measurements
	Backlight	Electroluminescent backlight, Selectable as On or Auto On
	Receiver bandwidth	1 MHz to 18 MHz (–3 dB)
	Metric/English mode	Metric or English units
	Display languages	English, French, German, Spanish, Italian,Portuguese, Russian, Polish, and Swedish
