Ultrasonic Thickness Gage38DL PLUS
Description

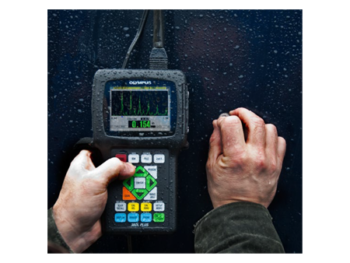

38DL PLUS Ultrasonic Thickness Gage
Advanced Features, Simple Operation

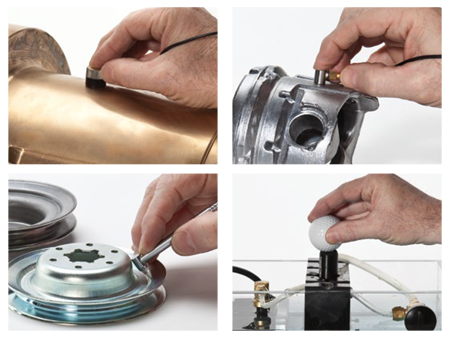

• Dual and Single Element Transducers
• Rugged, designed for IP67
• Thickness range from 0.08 mm (0.003 in.) to 635 mm (25 in.)
• Color Transflective VGA Display

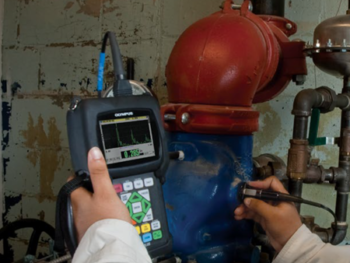

38DL PLUS Ultrasonic Thickness Gage: Advanced
Features, Simple Operation, Rugged, Reliable
| Measurements | Dual element transducer measurement mode | Time interval from a precision delay after the excitation pulse to the first echo |
|---|---|---|
| THRU-COAT® measurement | Measurement of true metal and coating thicknesses with a single back-wall echo (with D7906-SM and D7908 transducers) | |
| Thru-Paint Echo-to-Echo | Time interval between two successive back-wall echoes to eliminate paint or coating thickness | |
| Single element transducer measurement modes | Mode 1: Time interval between the excitation pulse and the first back-wall echo Mode 2: Time interval between the delay line echo and the first back-wall echo (with delay or immersion transducers) Mode 3: Time interval between successive back-wall echoes following the first interface echo after the excitation pulse (with delay line or immersion transducers) Oxide: optional Multilayer mode: optional |
|
| Thickness range | 0.080 mm to 635.00 mm (0.003 in. to 25.000 in.) depending on material, transducer surface conditions, temperature, and selected configuration | |
| Material velocity range | 0.508 mm/μs to 13.998 mm/μs (0.020 in./μs to 0.551 in./μs) | |
| Resolution (selectable) | Low: 0.1 mm (0.01 in.) Standard: 0.01 mm (0.001 in.) High Resolution (optional): 0.001 mm (0.0001 in.) |
|
| Transducer frequency range | Standard: 2.0 MHz to 30 MHz (-3 dB) High Penetration (optional): 0.50 MHz to 30 MHz (-3 dB) |
|
| General | Operating temperature range | -10 °C to 50 °C (14 °F to 122 °F) |
| Keypad | Sealed, color-coded keypad with tactile and audible feedback | |
| Case | Impact-resistant and water-resistant, gasketed case with sealed connectors. Designed for IP67. | |
| Dimensions (W x H x D) | Overall: 125 mm x 211 mm x 46 mm (4.92 in. x 8.31 in. x 1.82 in.) | |
| Weight | 0.814 kg (1.80 lb) | |
| Power supply | AC/DC adaptor, 24 V; lithium-ion battery 23.760 Wh; or 4 AA auxiliary batteries | |
| Battery life, lithium-ion | Operating time: minimum 12.6 h, 14 h typical, 14.7 h maximum Fast charge: 2 h to 3 h | |
| Standards | Designed for EN15317 | |
| Display | Color transflective VGA display | Liquid crystal display, display area 56.16 mm x 74.88 mm (2.2 in. x 2.95 in.) |
| Rectification | Full wave, RF, half-wave positive, or half-wave negative | |
| Inputs/Outputs | USB | 1.0 client |
| RS-232 | Yes | |
| Memory card | Maximum capacity: 2 GB External MicroSD memory card | |
| Video output | VGA output standard | |
| Internal Data logger | Data logger | The 38DL PLUS identifies, stores, recalls, clears, and transmits thickness readings, waveform images, and gage configuration information through the standard RS-232 serial port or USB port. |
| Capacity | 475,000 thickness measurements or 20,000 waveforms with thickness measurements | |
| File names, IDs, and comments | 32-character file names and 20-character alphanumeric location codes with four comments per location | |
| File structures | Nine standard or custom application-specific file structures | |
| Reports | On-gage reporting of summary with statistics, Min./Max. with locations, Min. review, file comparison, and alarm report |
